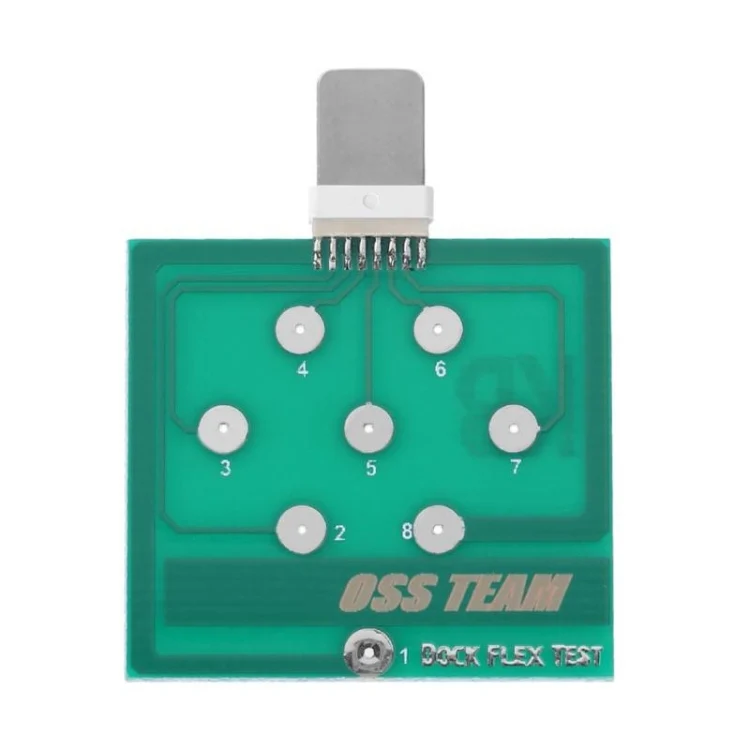

2 PCS Free Disassembly Detection Tail Plug Test Board For Apple
1. Mobile phone base elasticity test board is a small diagnostic tool, suitable for Phone, battery or base plug detection.
2. You can disassemble the free test to quickly and easily find the phone problem.
3. Dimensions: 30X27 mm
4. Pin definition:
--1- Identification / Control
--2 channels 1 negative
--3 channels 1 positive
--4 Power / Battery
--5 Identification / Control 0
--6 channel 0 negative
--7 channel 0 positive
--8 Ground
5. Weight: 0.0034KG
Specification:
| Package Weight |
|
$2.72
