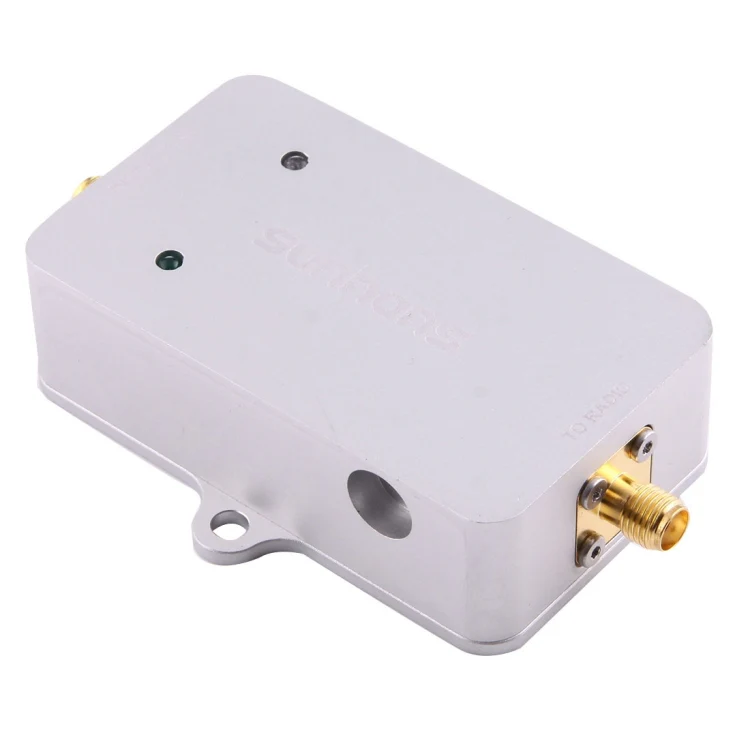

sunhans SH58Gi2000 2000mW (33dBm) 5.8GHz WiFi Signal Booster Repeater WiFi Amplifier
HomeStore

sunhans SH58Gi2000 2000mW (33dBm) 5.8GHz WiFi Signal Booster Repeater WiFi Amplifier

sunhans SH58Gi2000 2000mW (33dBm) 5.8GHz WiFi Signal Booster Repeater WiFi Amplifier

1. Brand new and high quality.
2. Extend Wi-Fi coverage area and eliminate Wi-Fi dead zone.
3. Supported standards: IEEE 802.11a/n.
4. Operating Mode: Bi-directional, half-duplex, time division duplex senses RF, carrier from transmitter and automatically switch receiving to transmitting mode.
5. Connector Type:SMA Receptacle 50ohm, to radio SMA female (Hole inside), to antenna RP-SMA female (Pin inside).
6. Output power: 2000mW (33dBm).


Specification:
General
Model SH58Gi2000
Types Repeater
Material Aluminum
Input Voltage 100-240V 50/60Hz (AC Adapter)
Output Voltage DC 12V (AC Adapter)
Output Current 2A (AC Adapter)
Input Power 0-20 dBm
Output Power 2000mW
Noise Figure 3.5 dB typical
Standards WiFi IEEE 802.11n
WiFi IEEE 802.11a
Operating Rang 5.0-5.875GHz
Connector Type SMA Receptacle (50ohm)
Transmit Gain 15-18dB
Receiver Gain <=12dB
Frequency Response + / - 2dB over operating range
Size 8.1x5.4x2cm
Weight 110g
Environment
Operating Temperature -20 - 70 Degrees Celsius
Operating Humidity Up 75%

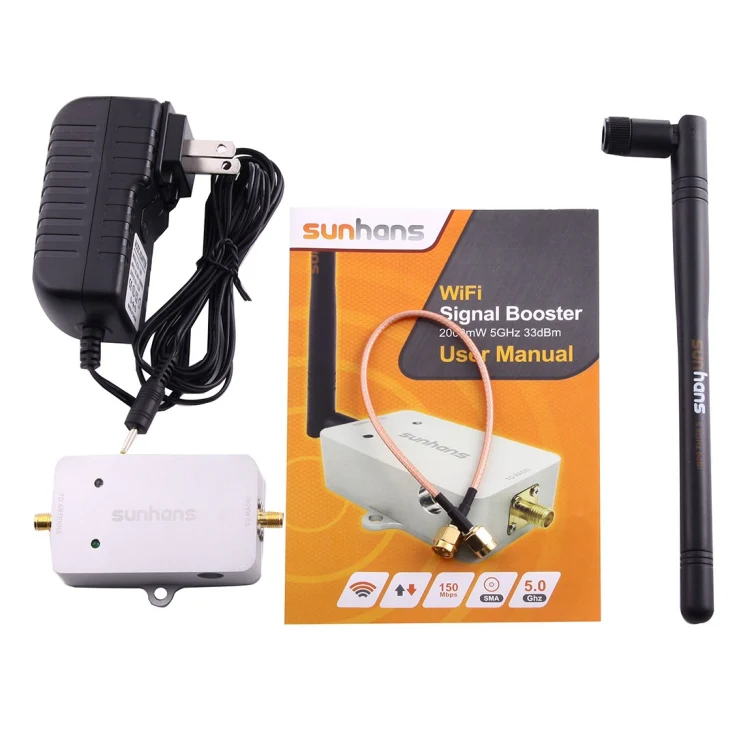

Package Include
Package Contents 1 x User Manual

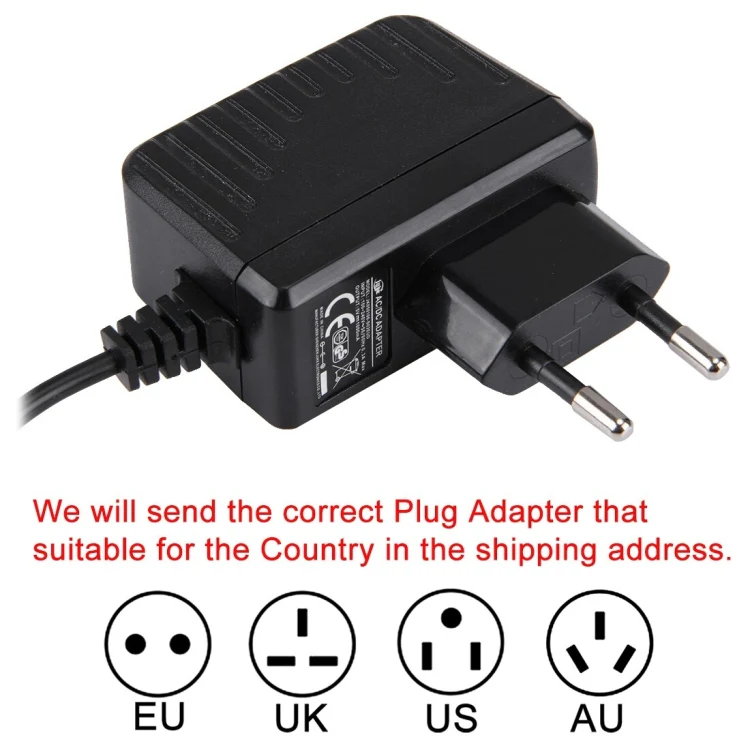

1 x Power Supply
1 x Signal Booster
1 x RG316 cable with SMA connectors (20cm)
1 x 6dBi omni antenna
Package Weight
One Package Weight 0.43kgs / 0.96lb
One Package Size 21.3cm * 13.7cm * 5.1cm / 8.39inch * 5.39inch * 2.01inch
Qty per Carton 20
Carton Weight 8.70kgs / 19.18lb
Carton Size 45cm * 28cm * 30cm / 17.72inch * 11.02inch * 11.81inch
Loading Container 20GP: 705 cartons * 20 pcs = 14100 pcs
40HQ: 1637 cartons * 20 pcs = 32740 pcs

$93.94
sunhans SH58Gi2000 2000mW (33dBm) 5.8GHz WiFi Signal Booster Repeater WiFi Amplifier
$93.94

More Images

sunhans SH58Gi2000 2000mW (33dBm) 5.8GHz WiFi Signal Booster Repeater WiFi Amplifier - Image 2
sunhans SH58Gi2000 2000mW (33dBm) 5.8GHz WiFi Signal Booster Repeater WiFi Amplifier - Image 3
sunhans SH58Gi2000 2000mW (33dBm) 5.8GHz WiFi Signal Booster Repeater WiFi Amplifier - Image 4
sunhans SH58Gi2000 2000mW (33dBm) 5.8GHz WiFi Signal Booster Repeater WiFi Amplifier - Image 5
sunhans SH58Gi2000 2000mW (33dBm) 5.8GHz WiFi Signal Booster Repeater WiFi Amplifier - Image 6
sunhans SH58Gi2000 2000mW (33dBm) 5.8GHz WiFi Signal Booster Repeater WiFi Amplifier - Image 7
sunhans SH58Gi2000 2000mW (33dBm) 5.8GHz WiFi Signal Booster Repeater WiFi Amplifier - Image 8
sunhans SH58Gi2000 2000mW (33dBm) 5.8GHz WiFi Signal Booster Repeater WiFi Amplifier - Image 9

sunhans SH58Gi2000 2000mW (33dBm) 5.8GHz WiFi Signal Booster Repeater WiFi Amplifier

1. Brand new and high quality.
2. Extend Wi-Fi coverage area and eliminate Wi-Fi dead zone.
3. Supported standards: IEEE 802.11a/n.
4. Operating Mode: Bi-directional, half-duplex, time division duplex senses RF, carrier from transmitter and automatically switch receiving to transmitting mode.
5. Connector Type:SMA Receptacle 50ohm, to radio SMA female (Hole inside), to antenna RP-SMA female (Pin inside).
6. Output power: 2000mW (33dBm).


Specification:
General
Model SH58Gi2000
Types Repeater
Material Aluminum
Input Voltage 100-240V 50/60Hz (AC Adapter)
Output Voltage DC 12V (AC Adapter)
Output Current 2A (AC Adapter)
Input Power 0-20 dBm
Output Power 2000mW
Noise Figure 3.5 dB typical
Standards WiFi IEEE 802.11n
WiFi IEEE 802.11a
Operating Rang 5.0-5.875GHz
Connector Type SMA Receptacle (50ohm)
Transmit Gain 15-18dB
Receiver Gain <=12dB
Frequency Response + / - 2dB over operating range
Size 8.1x5.4x2cm
Weight 110g
Environment
Operating Temperature -20 - 70 Degrees Celsius
Operating Humidity Up 75%
Package Include
Package Contents 1 x User Manual
1 x Power Supply
1 x Signal Booster
1 x RG316 cable with SMA connectors (20cm)
1 x 6dBi omni antenna
Package Weight
One Package Weight 0.43kgs / 0.96lb
One Package Size 21.3cm * 13.7cm * 5.1cm / 8.39inch * 5.39inch * 2.01inch
Qty per Carton 20
Carton Weight 8.70kgs / 19.18lb
Carton Size 45cm * 28cm * 30cm / 17.72inch * 11.02inch * 11.81inch
Loading Container 20GP: 705 cartons * 20 pcs = 14100 pcs
40HQ: 1637 cartons * 20 pcs = 32740 pcs

Product Information

Shipping & Returns

Description

1. Brand new and high quality.
2. Extend Wi-Fi coverage area and eliminate Wi-Fi dead zone.
3. Supported standards: IEEE 802.11a/n.
4. Operating Mode: Bi-directional, half-duplex, time division duplex senses RF, carrier from transmitter and automatically switch receiving to transmitting mode.
5. Connector Type:SMA Receptacle 50ohm, to radio SMA female (Hole inside), to antenna RP-SMA female (Pin inside).
6. Output power: 2000mW (33dBm).


Specification:
General
Model SH58Gi2000
Types Repeater
Material Aluminum
Input Voltage 100-240V 50/60Hz (AC Adapter)
Output Voltage DC 12V (AC Adapter)
Output Current 2A (AC Adapter)
Input Power 0-20 dBm
Output Power 2000mW
Noise Figure 3.5 dB typical
Standards WiFi IEEE 802.11n
WiFi IEEE 802.11a
Operating Rang 5.0-5.875GHz
Connector Type SMA Receptacle (50ohm)
Transmit Gain 15-18dB
Receiver Gain <=12dB
Frequency Response + / - 2dB over operating range
Size 8.1x5.4x2cm
Weight 110g
Environment
Operating Temperature -20 - 70 Degrees Celsius
Operating Humidity Up 75%
Package Include
Package Contents 1 x User Manual
1 x Power Supply
1 x Signal Booster
1 x RG316 cable with SMA connectors (20cm)
1 x 6dBi omni antenna
Package Weight
One Package Weight 0.43kgs / 0.96lb
One Package Size 21.3cm * 13.7cm * 5.1cm / 8.39inch * 5.39inch * 2.01inch
Qty per Carton 20
Carton Weight 8.70kgs / 19.18lb
Carton Size 45cm * 28cm * 30cm / 17.72inch * 11.02inch * 11.81inch
Loading Container 20GP: 705 cartons * 20 pcs = 14100 pcs
40HQ: 1637 cartons * 20 pcs = 32740 pcs
